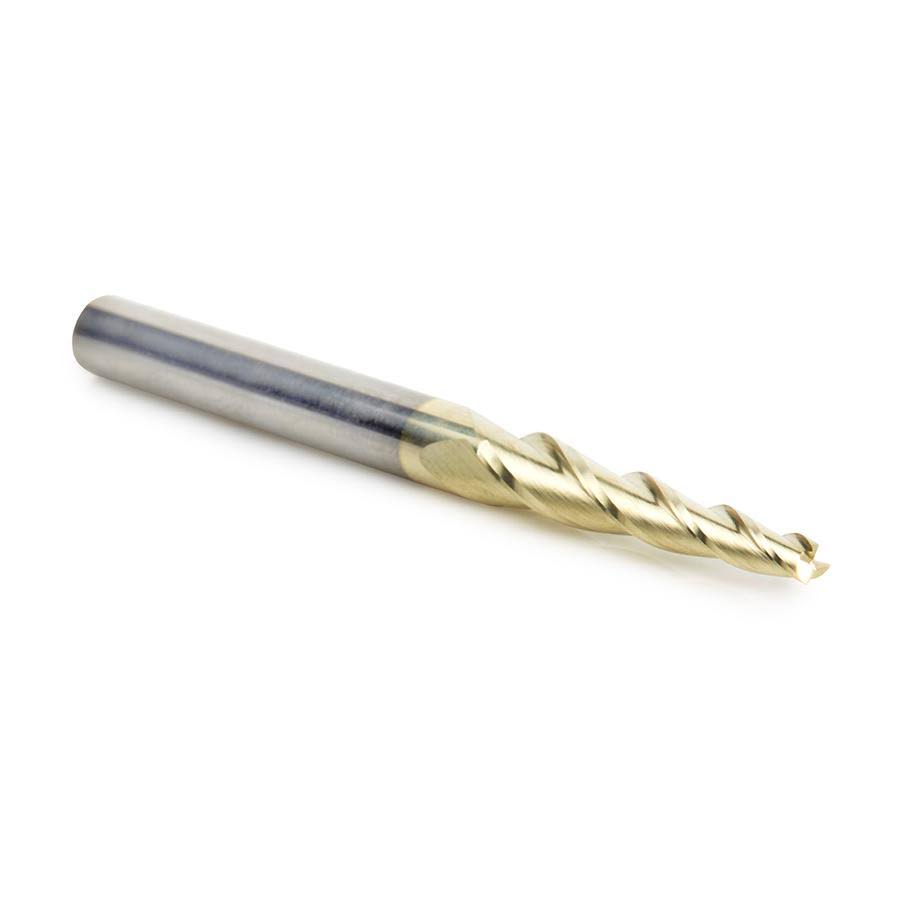

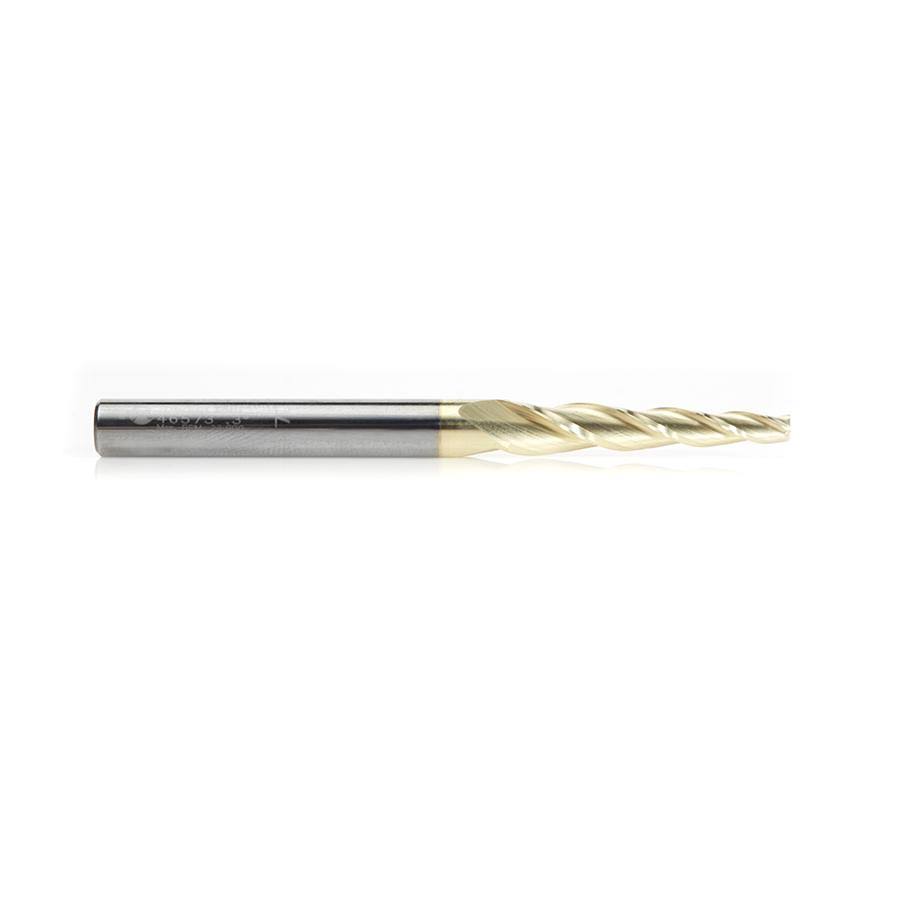

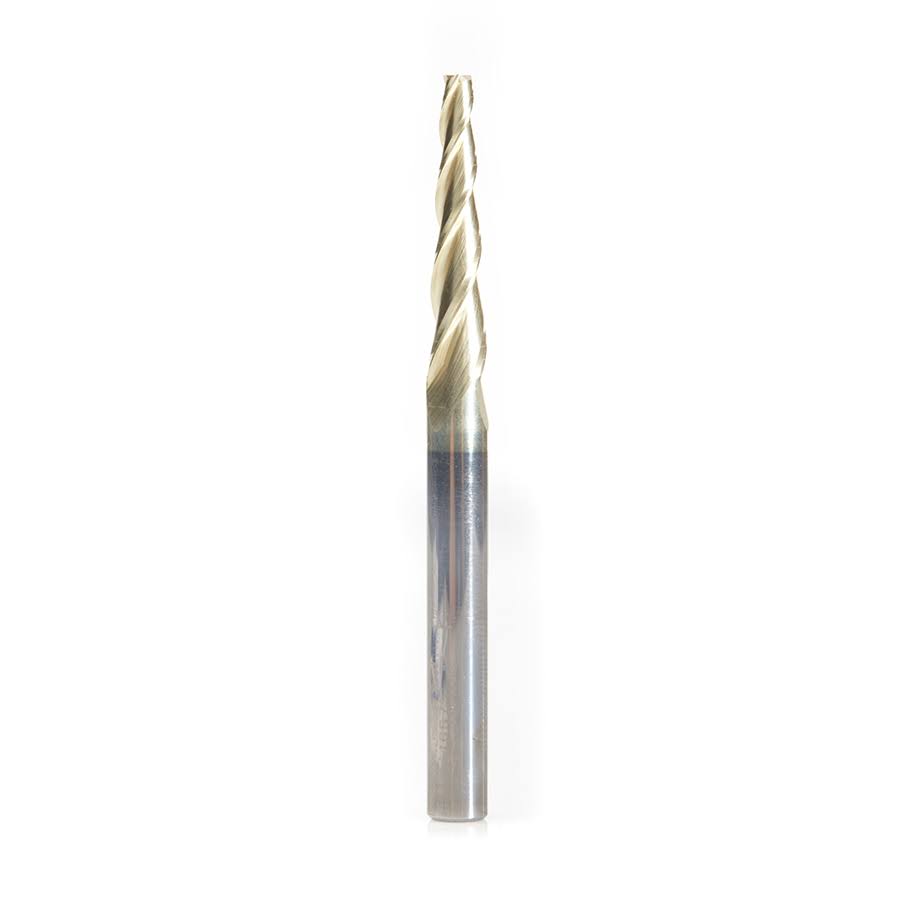

3 Flute Solid Carbide ZrN Carving Flat Bottom Bit E9680
Sale price
$13.95
Regular price $53.54
Skip to product information

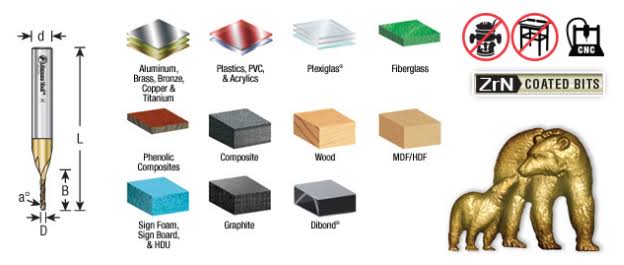

46573, Amana CNC 2D and 3D Carving Flat Bottom 3.6-Deg Angle x 1/8' Dia x 1' x 1/4' Shank x 3' Solid Carbide ZrN Coated Router Bit Solid Carbide 2D and 3D Carving Tapered Ball Nose (Conical Ball) Zirconium Nitride (ZrN) Coated Router Bits Specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum, & wood with machines such as 'i-Carver', CNC Shark , ShopBot , Datron & Carvewright . The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction & heat buildup. Applications: A perfect bit for 3D carving Precision 2D and 3D large scale carving Great for deep profiling Dimensional signage 3D millwork 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials Excellent for cutting: Acrylonitrile-Butadiene-Styrene (ABS) Acrylic Acrylic Stone Aluminum Brass Bronze Composite Copper Corian Coroplast * Dibond Ethafoam*** Ethylene-vinyl Acetate Foam (EVA) Expanded Polypropylene (EPP)** Expanded Polystyrene Foam (EPS) Extruded Polystyrene Foam (XPS) Fiberglass Fiberglass PCB Board Foam Board Graphite High Density Polyethylene (HDPE) High Density Urethane (HDU) 20lbs High Density Urethane Lexan MDF/HDF PALFOAM Phenolics Phenolic Composites Plastics Poly (methyl methacrylate) (PMMA) Polyethylene Foam*** Polylam*** Polyurethane Foam PVC PVC Foam Board Sign Board Sign Foam Titanium Tooling Board Wood XPE (Cross Linked Polyethylene) Foam Benefits of Zirconium Nitride (ZrN) Coating Creates a harder and tougher cutting edge, allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting Have the tendency to run/spin much faster than an uncoated tool Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles) High flute volume supports high feed rates and chip loads High aspect ratio for single pass deep-reach cutting Flute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites Milling Plastics:In a milling application, all plastics tend to behave differently so attention must be paid first and foremost to heat input, as that greatly impacts surface finish and chip control. Suggested starting spindle speed might be 18,000 RPM, there needs to be some experimenting on the part of the programmer to best find an acceptable finish. Specifications: (D) Diameter 1/8 (a°) Angle 3.6° (B) Cutting Height 1 (d) Shank 1/4 Overall Length (L) 3 Type Flat Bottom, ZrN Flutes 3 *A soft plastic cardboard made with super soft, super flexible PVC. **Expanded polypropylene (EPP) is a foam form of polypropylene. ***Ethafoam, Polyethylene, and Polylam are durable, flexible, closed-cell foams with excellent memory.
3 Flute Solid Carbide ZrN Carving Flat Bottom Bit E9680
Sale price
$13.95
Regular price $53.54
Shipping calculated at checkout.
